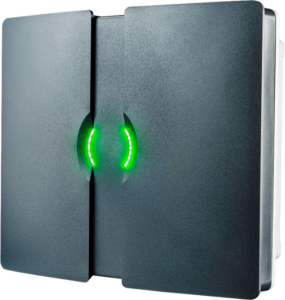

TRANSIT Ultimate
Highly secure vehicle and driver identification.
Based on semi-active RFID technology, TRANSIT is the leading
platform for automatic identification of vehicles and drivers. TRANSIT
identifies vehicles and their drivers at a distance of up to 10metres (33ft.)
with a traveling speed up to 200 km/h (125 mph).
Applications:
This high-end reader is designed to perform well in high security applications, demanding vehicular access control applications and under harsh environmental conditions. Typical applications include: highly secured vehicle access at airports, seaports, mines, military bases and other installations where vehicles must be assigned to specific drivers.
Read range adjustment
The reader resolves typical multi-lane, entry and exit reader challenges. The read range of the reader can be adjusted, offering accurate identification in demanding applications.
- Main Features
- Simultaneous vehicle and driver identification
- Read range up to 10 meters (33 feet)
- Object speed up to 200 km/h (125 mph)
- Tag authentication based on AES encryption
- Adjustable read range
- Bi-directional communication
- Variety of integrated communication interfaces
- Robust industrial design
- OSDP v2 supported including secure channel protocol
TRANSIT ATEX
ATEX IECEx certified long-range identification reader.
Vehicle identification:
The TRANSIT ATEX reader is an extremely robust RFID reader that enables long-range identification of vehicles and drivers in harsh environments. Based on semi active RFID technology, vehicles and drivers are identified at distances up to 10 meters (33 feet) and speeds up to 200 km/h (125 mph). This reader is the certified solution in situations that require explosion-protected equipment. The TRANSIT ATEX offers the highest level of security and convenience.
Applications:
Typical applications include highly secured vehicle access at chemical plants, oil & gas refineries, paint shops, cleaning facilities, milling & flour plants and tank & loading facilities for flammable gases, liquids and solids.
Read range adjustment:
The reader resolves typical multi-lane, entry and exit reader challenges. The read range of the reader can be adjusted, offering accurate identification in demanding applications.
- Main Features
- ATEX IECEx certified. (33 feet)
- Simultaneous vehicle and driver identification
- Reliable under harsh environmental conditions.
- Read range up to 10 meters (33 feet).
- Object speed up to 200 km/h (125 mph).
- Adjustable read range.
- Variety of integrated communication interfaces.
uPASS Reach
The uPASS Reach is a UHF RFID reader for long-range vehicle identification. Based passive UHF technology (± 900 MHz), vehicles are identified up to 5 meters (16,4 feet). The uPASS Reach complies with the ISO18000-6C and EPC global Gen 2 directive.
Applications
As the uPASS Reach is used in combination with battery free UHF (EPC Gen 2) tags, the solution is cost efficient. It is ideal for convenient vehicle access to car parks, gated communities and staff parking areas.
- Main Features
- automatic vehicle identification
- read range up to 5 meters (16,4 feet)
- operates with passive UHF cards (EPC Gen 2)
- adjustable read range
- supported communication interfaces: Wiegand, RS232 and RS422
